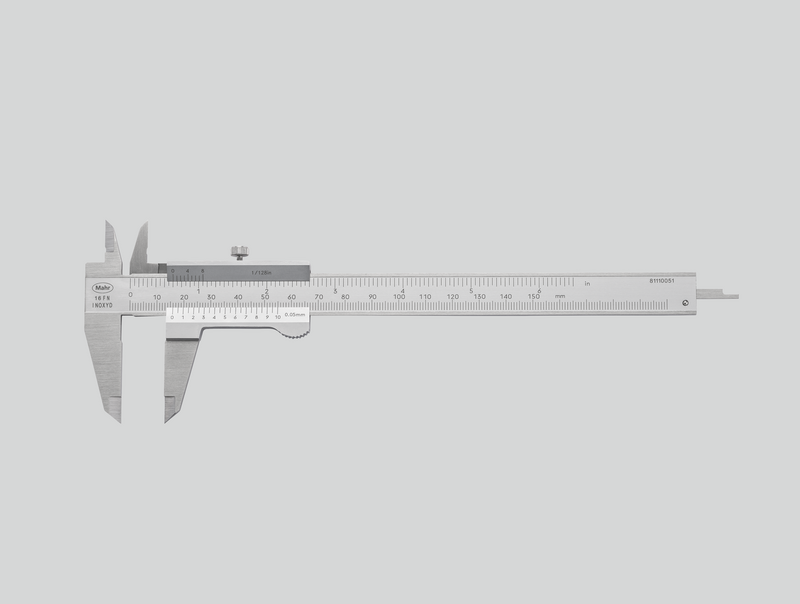

Mahr Vernier Caliper

MarCal 16 FN / 16 GN

Caliper with analog display

FEATURES

• Vernier and scale have a satin chrome finish for glare free reading
• Locking screw above
• Measuring surfaces made of steel
• Measuring blade for inside measurements
• Slide and beam made of hardened stainless steel
• Step measuring function
• Raised guideway for the protection of the scale
• Package contains: thread table, case

** TECHNICAL DATA**

Order no.	Type	Measuring range (mm)	Measuring range (inch)	Vernier value (mm)	Vernier value (inch)	Error limit (mm)	Error limit (inch)	Standard	Depth rod
4100400	16 FN	0–150	0–6″	0.05	1/128″	0.05	0.002	DIN 862	rectangular
4100401	16 FN	0–200	0–8″	0.05	1/128″	0.05	0.002	DIN 862	rectangular
4100402	16 FN	0–300	0–12″	0.05	1/128″	0.05	0.002	DIN 862	rectangular
4100420	16 FN	0–150		0.05		0.05		DIN 862	rectangular
4100421	16 FN	0–200		0.05		0.05		DIN 862	rectangular
4100422	16 FN	0–300		0.05		0.05		DIN 862	rectangular
4100650	16 GN	0–150		0.02		0.05		Factory standard	rectangular
4100651	16 GN	0–200		0.02		0.05		Factory standard	rectangular
4100652	16 GN	0–300		0.02		0.05		Factory standard	rectangular
