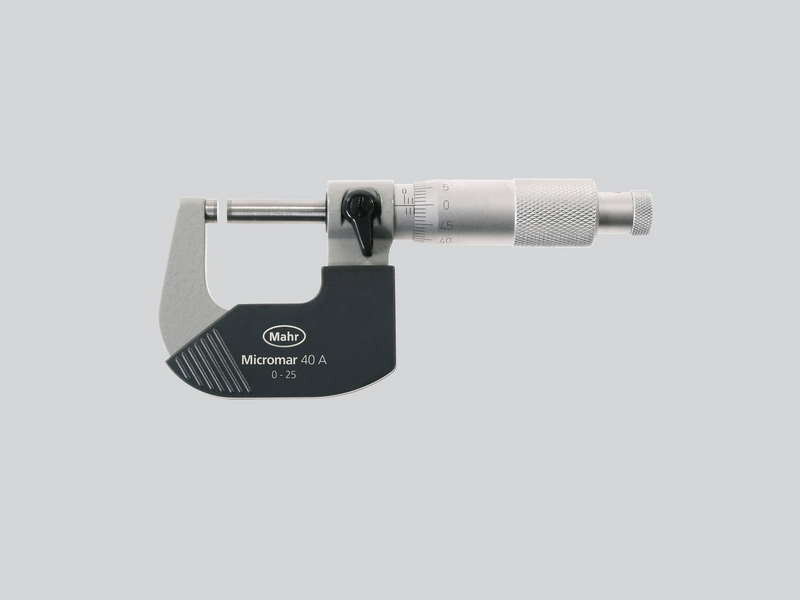

Mahr Mechanical Outside Micrometer

Micromar 40 A / 40 SA

Micrometer

FEATURES

• Operating and display units with satin chrome finish
• Hard lacquered steel frame
• Spindle and anvil made of hardened steel, carbide-tipped
• Heat insulators
• Rapid drive with integrated ratchet
• Locking device
• Package contains: setting standard (measuring range of 25– 50 mm), instruction manual, case

TECHNICAL DATA

Order no.	Type	Measuring range (mm)	Measuring range (inch)	Readings (mm)	Readings (inch)	Error limit (µm)	Error limit (inch)	Spindle pitch (inch)	Spindle thread pitch (mm)
4134000	40 A	0–25		0.01		4			0.5
4134001	40 A	25–50		0.01		4			0.5
4134002	40 A	50–75		0.01		5			0.5
4134003	40 A	75–100		0.01		5			0.5
4134004	40 A	100–125		0.01		6			0.5
4134005	40 A	125–150		0.01		6			0.5
4134006	40 A	150–175		0.01		7			0.5
4134007	40 A	175–200		0.01		7			0.5
4134050	40 SA	0–100		0.01					0.5
4134051	40 SA	100–200		0.01					0.5
4134900	40 A		0–1″		0.0001		0.00016	0.025
4134901	40 A		1–2″		0.0001		0.00016	0.025
4134902	40 A		2–3″		0.0001			0.025
4134903	40 A		3–4″		0.0001			0.025
4134904	40 A		4–5″		0.0001		0.0002	0.025
4134905	40 A		5–6″		0.0001		0.0002	0.025
4134906	40 A		6–7″		0.0001		0.00028	0.025
4134907	40 A		7–8″		0.0001		0.00028	0.025
4134960	40 SA		0–4″		0.0001			0.025
4134961	40 SA		4–8″		0.0001			0.025
