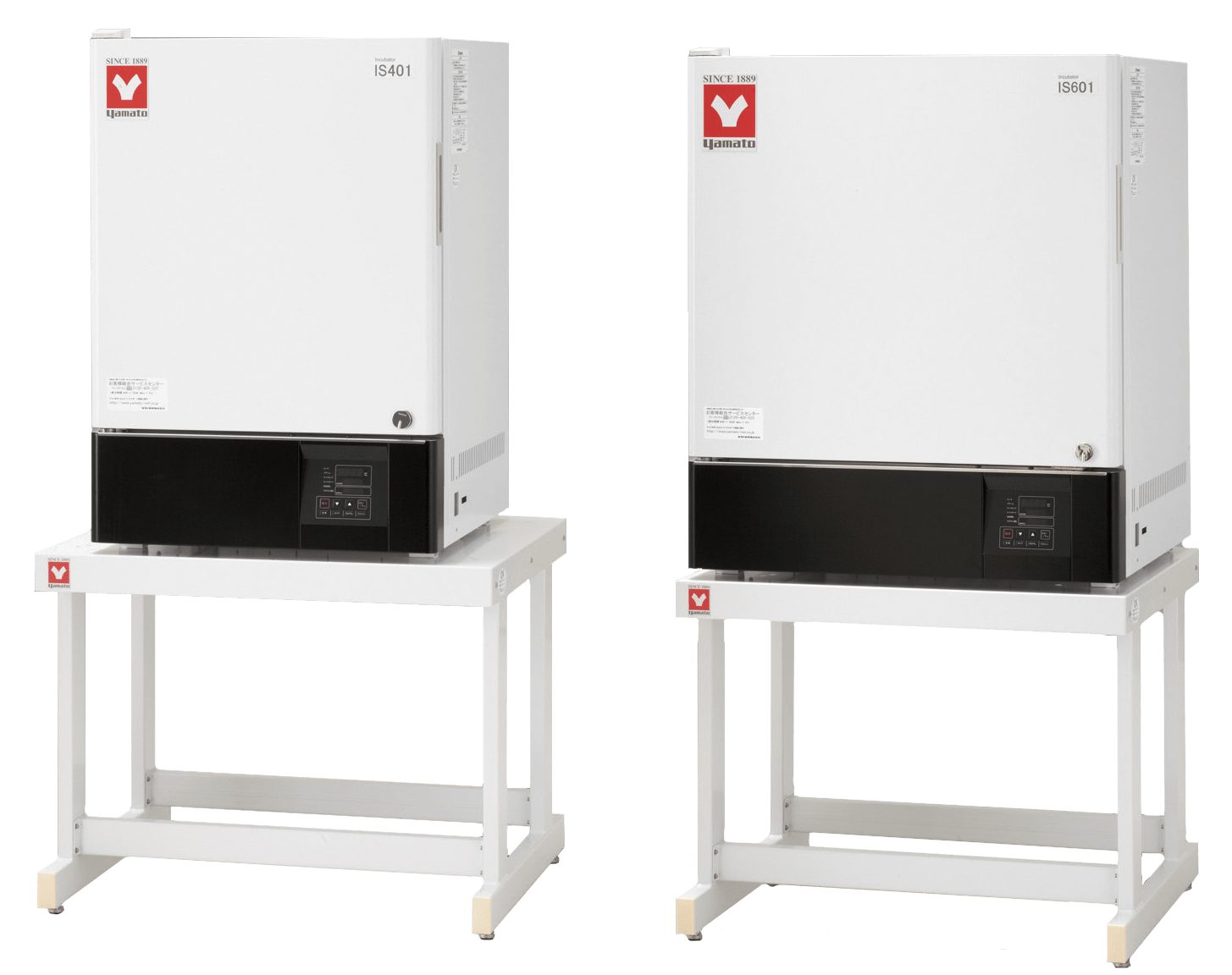

Yamato IS Series

High Temp. Incubators | Air Jacket

IS412C/612C/812C/912C

From small capacity to large capacity, high-function, long-term hot sale constant temperature incubators.

Features

• Due to the air jacket heat transfer method, the temperature distribution is uniform.
• Double door structure reduces heat loss, maintaining a stable constant temperature state.
• Inner door is made of reinforced glass, allowing observation of the interior.
• Easy operation, available for fixed temp., program, quick auto stop, auto stop and auto start operations.
• Use special function menu keys and up/down keys to realize digital setting. With repeat function, 6 modes in total of 90 segments.
• Use submenu keys to operate overheat protector, deviation correction and key locking.

Safety

• Equipped with self-diagnostic circuit (temperature sensor error detection, heater disconnection protection, automatic overheating prevention, SSR short-circuit protection), overheating prevention, overcurrent leakage protection switch, key lock safety and other safety functions.

Common Specifications

Specifications	DN Series
System	Airflow natural convection
Operating temp. range	Room temp. +5~80℃
Temp. fluctuation	±0.5℃ (at 37℃)
Temp. uniformity	±1.5℃ (at 37℃)
Temp. adjusting accuracy	±0.2℃ (at 37℃)
Temp. distribution accuracy	±1.0℃ (at 37℃)
Interior material	Stainless steel plate
Exterior material	Cold rolled steel plate with chemical proofing coating
Insulating material	Glass fiber
Temp. control method	PID control
Temp. setting method	Use special function menu keys and up/down keys to realize digital setting
Temp. display method	Achieved temp. display: Green 4-digit LED digital display Setting temp. display: Red 4-digit LED digital display
Timer	1 min-99 h 59 min and 100-999 h 50 min (including timer waiting function)
Operation functions	Fixed temp. operation, auto start, auto stop, program operation
Program mode	Program operation 6 modes with a total of 90 segments (30×1, 15×2, 10×3)
Additional functions	Deviation correction, key lock, power outage compensation
Sensors	Temperature regulator: Pt thermal resistor For overheat protection: K-type thermocouple
Safety device	Self-diagnostic function (temperature sensor anomaly, SSR short circuit, heater disconnection, automatic overheat prevention), key lock function, overheat prevention device, overcurrent leakage protection switch

Difference Between Model

Specifications	IS412C	IS612C	IS812C	IS912C
Internal dimensions	450×480×450	600×530×500	600×530×1000	1070×530×1000
External dimensions (W×D×H mm)	560×606×820	710×656×870	710×656×1619	1180×655×1619
Internal capacity	97L	159L	318L	567L
Shelf load	Approx. 15kg/shelf	Approx. 15kg/shelf	Approx. 15kg/shelf	Approx. 15kg/shelf
Shelf layers	11 layers	13 layers	29 layers	29 layers×2
Support interval	30mm	30mm	30mm	30mm
Power supply (50/60Hz) rated current	AC220V 1.5A	AC220V 2A	AC220V 3.5A	AC220V 6.5A
Weight	Approx. 45kg	Approx. 65kg	Approx. 102kg	Approx. 166kg
