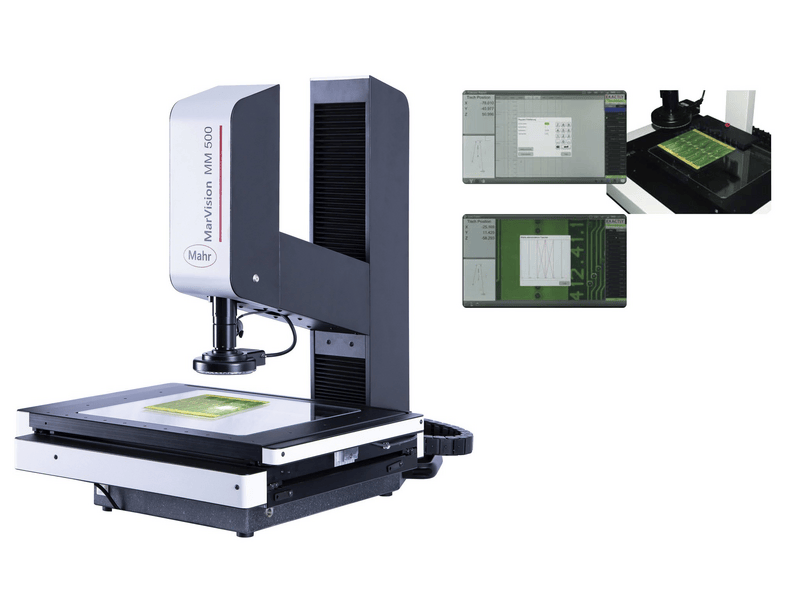

Mahr MarVision MM 500

MarVision | Workshop measuring microscope with M3-software

MarVision MM 500

Ideal for fast measurement

The MarVision MM 500 inspects, for example, turned, milled, punched and bent parts, plastic parts or electronic circuit boards. The measuring microscope uses automatic edge detection to determine geometric elements such as points, straight lines, circles, distances, angles or intersections on these workpieces without contact. Thanks to the optical incremental measuring system, it offers outstanding accuracy and reliability. In addition, its color camera captures particularly high-contrast images.

Equipment

• Integrated color camera
• Zoom lens (0.7x - 4.5x) optionally motorized
• LED ring light: 1 ring and 4 segments, individually switchable and dimmable
• LED transmitted light: dimmable
• Pointer for position finding
• Solid granite base
• Sturdy steel XY table, precision-mounted
• Optical incremental measuring system for outstanding accuracy and reliability

Operating and display unit M3-software with touchscreen PC

• 23" touchscreen with keyboard and mouse
• Opperating system Windows
• Operation via Multi-Touch screen or with mouse / keyboard
• M3-Software
• Large video image
• Reference / actual evaluation with tolerances
• Record output with company logo
• Graphic display with dimensioning
• Statistics

Applications

Measurement or determination of geometric elements (point, straight line, circle, distance, intersection point, etc.) by automatic edge detection, e.g. on punched and bent components, plastic components, and circuit boards.

Technical Data

Specifications	MarVision MM500
Max. height of test piece	200 mm
Energy supply	230 V/115 V; 50/60 Hz
Measuring system execution	Built-in incremental scale
Measuring range X/Y in mm	200/100 mm
Measuring system - E1 X/Y in µm	1.9 + (L/100)
Measuring system - E2 XY in µm	2.9 + (L/100)
Dimensions in mm	642 × 526 × 800
Package contains	M3 software with touchscreen PC, instruction manual, Mahr calibration certificate
Magnification	35 - 225x
Illumination	LED back and front illumination, adjustable
Size of table in mm	370 × 210 mm
Measuring system - resolution in mm	0.001 mm
Table load max.	20 kg
